Bifacial

Product

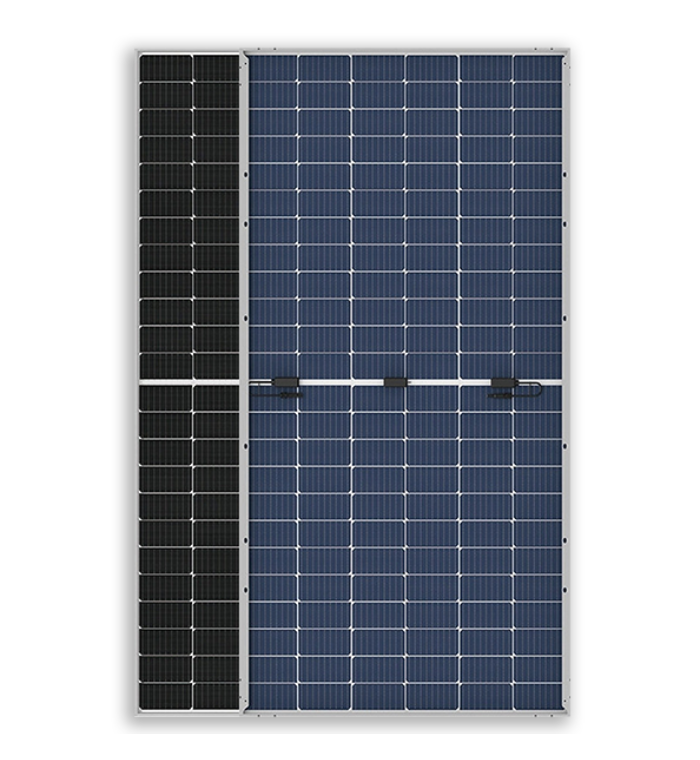

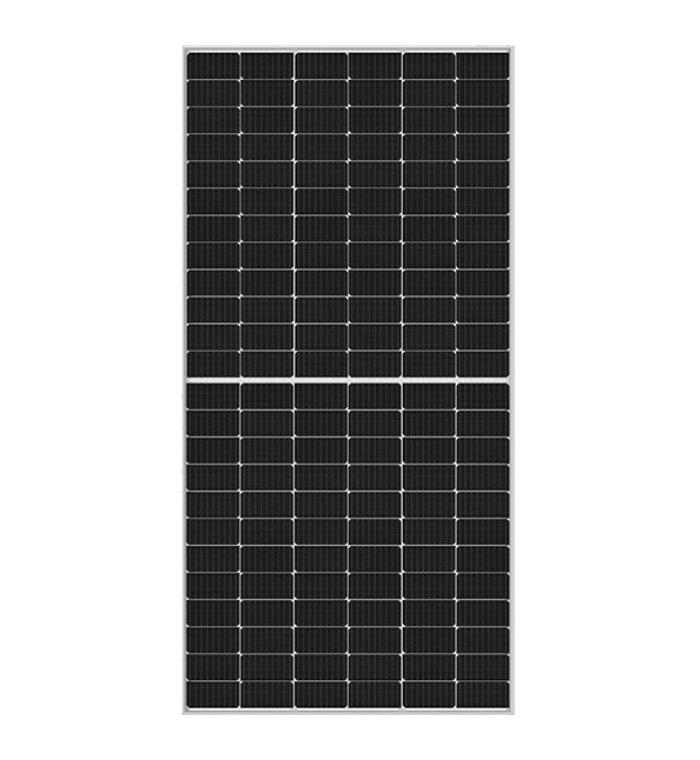

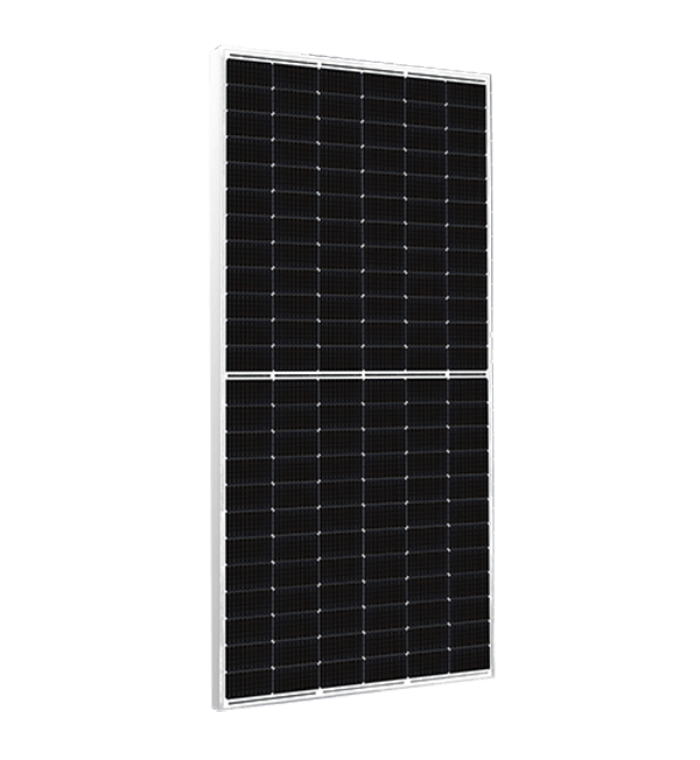

Bifacial ( Glass To Transparent Backsheet )

540 Wp - 555 Wp

  • Anti-reflective (AR) Coated Glass for Enhanced Power
  • Excellent Module Efficiency with Bifacial Power Gain
  • Rayzon Solar Module ensures Long-term reliability
  • Positive Power Tolerance with Current Binning to Prev
Datasheet Download
Technical Data

ELECTRICAL PERFORMANCE [Note: Power tolerance: 0 ~ +4.99 W. Power measurement uncertainty: < ±3%. Average value of NOCT: 45.08 ± 2 °C]

Electrical Characteristics* RSB540WC RSB545WC RSB550WC RSB555WC
Nominal Maximum Power (Pmax) 540 W ≽ 405 W 545 W ≽ 408 W 550 W ≽ 412 W 555 W ≽ 416 W
Optimum Operating Voltage (Vmp) 41.86 V ≽ 39.09 V 42.01 V ≽ 39.23 V 42.14 V ≽ 39.35 V 42.28 V ≽ 39.48 V
Optimum Operating Current (Imp) 12.91 A ≽ 10.36 A 12.98 A ≽ 10.41 A 13.06 A ≽ 10.48 A 13.13 A ≽ 10.53 A
Open Circuit Voltage (Voc) 49.78 V ≽ 46.67 V 49.91 V ≽ 46.80 V 50.06 V ≽ 46.94 V 50.20 V ≽ 47.07 V
Short Ciruit Current (Isc) 13.53 A ≽ 10.90 A 13.59 A ≽ 10.95 A 13.65 A ≽ 11.00 A 13.71 A ≽ 11.05 A
Module Efficiency 20.94 % 21.13 % 21.32 % 21.52 %
BIFACIAL OUTPUT – BACKSIDE POWER GAIN @ STC* [Bifaciality Factor: 75% ± 10%]

[Note: The bifacial gain depends on the power plant design and site conditions. Electrical component ratings should be selected as per actual Bifacial gain at site (module currents indicated below)]

5% Nominal Maximum Power (Pmax)
Module Short Circuit Current / Efficiency 		567 W
14.21 A / 21.99 % 		573 W
14.27 A / 22.18 % 		578 W
14.33 A / 22.39 % 		583 W
14.39 A / 22.59 %
10% Nominal Maximum Power (Pmax)
Module Short Circuit Current / Efficiency 		594 W
14.88 A / 23.03 % 		600 W
14.95 A / 23.24 % 		605 W
15.02 A / 23.46 % 		611 W
15.08 A / 23.67 %
25% Nominal Maximum Power (Pmax)
Module Short Circuit Current / Efficiency 		676 W
16.91 A / 26.17 % 		682 W
16.99 A / 26.41 % 		688 W
17.06 A / 26.65 % 		694 W
17.14 A / 26.89 %
Dimensions 2278(L) x 1133(W) x 40(T) in mm
Weight(kg) 28.6
Cell type / No Of Cell 144 Half-cut Mono PERC Bifacial Solar cells
Frame Anodized Aluminum Alloy (6005, Temper T6, Silver colour)
Front Cover ARC coated Low Iron Tempered Glass (3.2 mm thick)
Encapsulate Ethylene Vinyl Acetate (EVA) - PID resistant and UV resistant

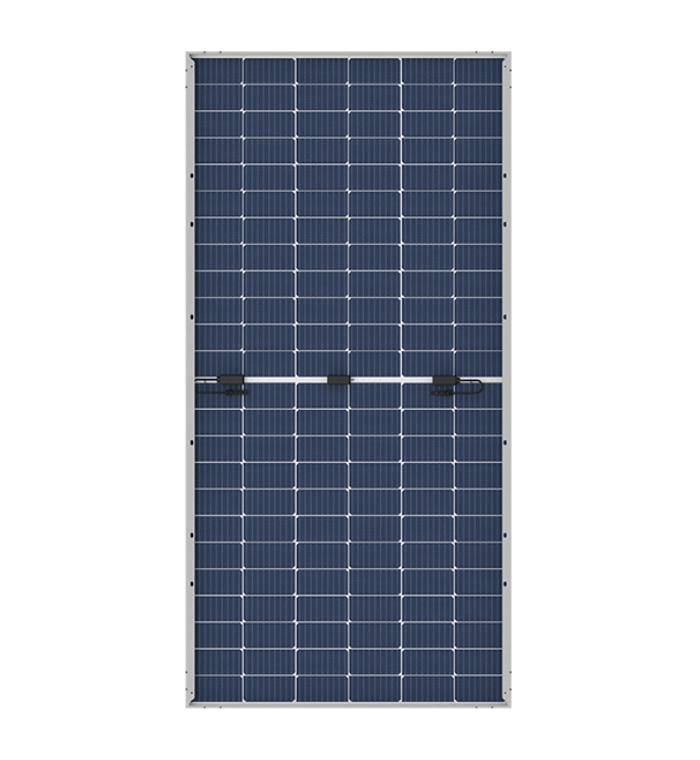

Back Cover Corona treated PVDF Fluoro-polymer based transparent Backsheet
Junction Box 25A Split type (3 nos. with individual Bypass Diode) – Weatherproof (IP68)
Bypass Diode 40 A, 45 V, 200 °C max. junction temperature
Cable 4 sq. mm, 300 mm length (Customised cable length available on request)
Connectors MC4 compatible (MC4 original available on request)
Application Class Rating Class A
Safety Class Rating Class II
Mechanical Load Test 5400 Pa-Front; 2400 Pa-Back (as per IEC & UL)
Mounting Holes Pitch (Y)-mm [A] 1400, [B] 1100, [C] 400
Mounting Holes Pitch (X)-mm 1095
STACKING STANDARD 19FT 20FT 40FT
No. of Modules per Container:

192

288

528
No. of Pallets per Container:

08

12

22

No. of Modules per Pallet/Weight:

24 Nos/ 730 Kg

Pallet Dimensions in mm:

2320(L)*1000(W)*1275(H)
