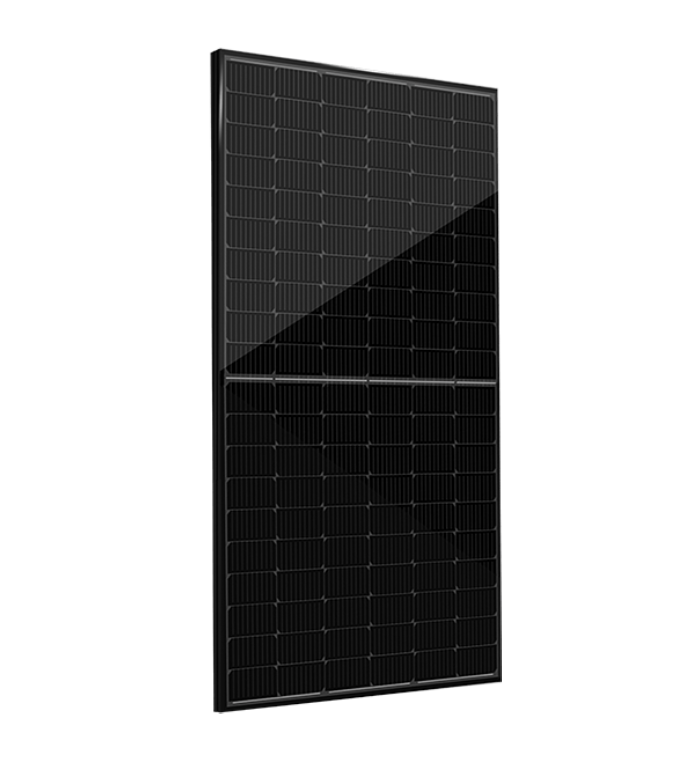

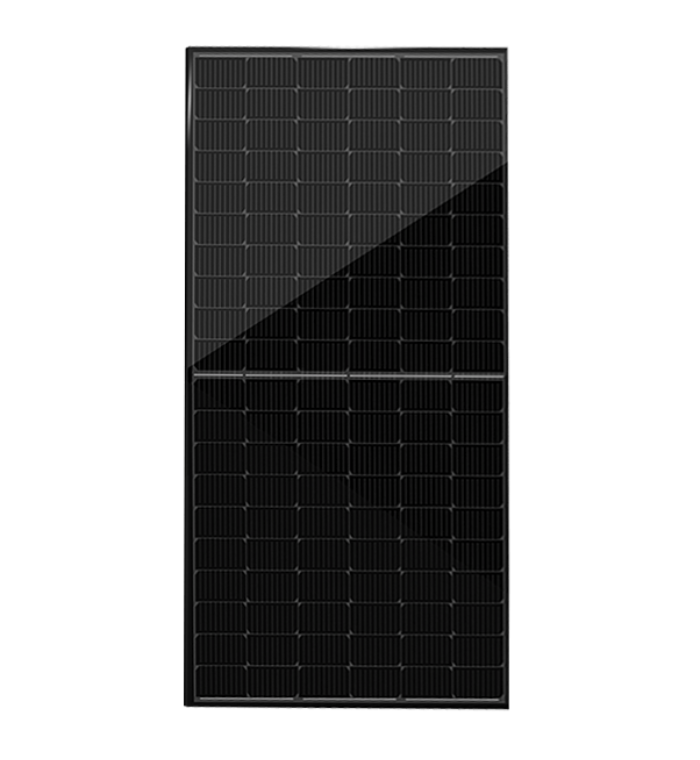

N-TYPE Topcon

Product

N-TYPE Topcon

425 Wp - 440 Wp

  • Anti-reflective (AR) Coated Glass for Enhanced Power
  • Excellent Module Efficiency with Bifacial Power Gain
  • Rayzon Solar Module ensures Long-term reliability
  • Positive Power Tolerance with Current Binning to Prevent
Datasheet Download
Technical Data

ELECTRICAL PERFORMANCE [Note: Power tolerance: 0 ~ +4.99 W. Power measurement uncertainty: < ±3%. Average value of NOCT: 45.08 ± 2 °C]

ELECTRICAL CHARACTERISTICS* RS425108TBC RS430108TBC RS435108TBC RS440108TBC
Nominal Maximum Power (Pmax) 425 W ≽ 319 W 430 W ≽ 323 W 435 W ≽ 326 W 440 W ≽ 330 W
Optimum Operating Voltage (Vmp) 33.15 V ≽ 31.13 V 33.42 V ≽ 31.39 V 33.56 V ≽ 31.52 V 33.70 V ≽ 31.65 V
Optimum Operating Current (Imp) 12.84 A ≽ 10.25 A 12.87 A ≽ 10.28 A 12.97 A ≽ 10.35 A 13.07 A ≽ 10.43 A
Open Circuit Voltage (Voc) 39.14 V ≽ 36.91 V 39.45 V ≽ 37.20 V 39.60 V ≽ 37.34 V 39.75 V ≽ 37.49 V
Short Circuit Current (Isc) 13.54 A ≽ 10.91 A 13.65 A ≽ 11.00 A 13.71 A ≽ 11.05 A 13.77 A ≽ 11.10 A
Module Efficiency 21.78 % 22.04 % 22.30 % 22.55 %
BIFACIAL OUTPUT – BACKSIDE POWER GAIN @ STC* [Bifaciality Factor: 80% ± 10%]

[Note: The bifacial gain depends on the power plant design and site conditions. Electrical component ratings should be selected as per actual Bifacial gain at site (module currents indicated below)]

5% Nominal Maximum Power (Pmax)
Module Short Circuit Current / Efficiency 		446 W
14.22 / 22.87 % 		452 W
14.34 / 23.14 % 		457 W
14.40 / 23.41 % 		462 W
14.46 / 23.68 %
10% Nominal Maximum Power (Pmax)
Module Short Circuit Current / Efficiency 		468 W
14.89 / 23.96 % 		473 W
15.02 / 24.24 % 		479 W
15.08 / 24.53 % 		484 W
15.15 / 24.81 %
25% Nominal Maximum Power (Pmax)
Module Short Circuit Current / Efficiency 		531 W
16.92 / 27.23 % 		538 W
17.07 / 27.55 % 		544 W
17.14 / 27.87 % 		550 W
17.21 / 28.19 %
Dimensions 1722(L) x 1133(W) x 35(T) In mm
Weight(kg) 25
Cell type / No Of Cell 108 Half-cut N-type TOPCon Bifacial Solar cells
Frame Anodized Aluminum Alloy (6005, Temper T6, Black colour)
Front Cover Semi-Tempered AR coated Glass (2 mm thick )
Encapsulate PID resistant and UV resistant Polymeric Film

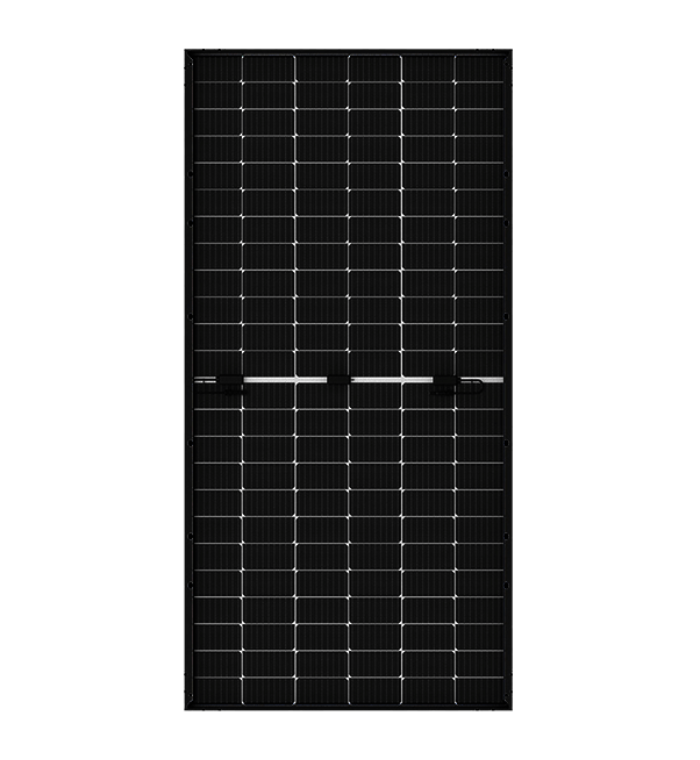

Back Cover Semi-Tempered Glass (2 mm thick)
Junction Box 30A Split Junction Box (3 nos. with individual Bypass Diode) – Weatherproof (IP68)
Bypass Diode 50 A, 45 V, 200 °C max. junction temperature
Cable 4 sq. mm, 300 mm length (Customised cable length available on request)
Connectors MC4 compatible (MC4 original available on request)
Application Class Rating Class A
Safety Class Rating Class II
Mechanical Load Test 5400 Pa-Front; 2400 Pa-Back (as per IEC & UL)
Mounting Holes Pitch (Y)-mm [A] 1400, [B] 860,[C] 400
Mounting Holes Pitch (X)-mm 1095
STACKING STANDARD 20FT 40FT
No. of Modules per Container:

186

806
No. of Pallets per Container:

6

26

No. of Modules per Pallet/Weight:

31 Nos/815 Kg

Pallet Dimensions in mm:

1760(L)*1130(W)*1275(H)
