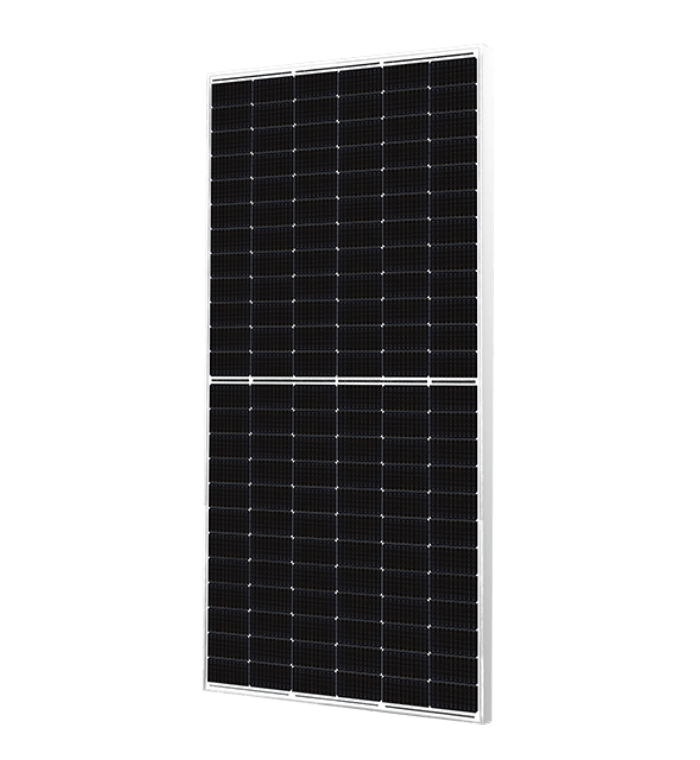

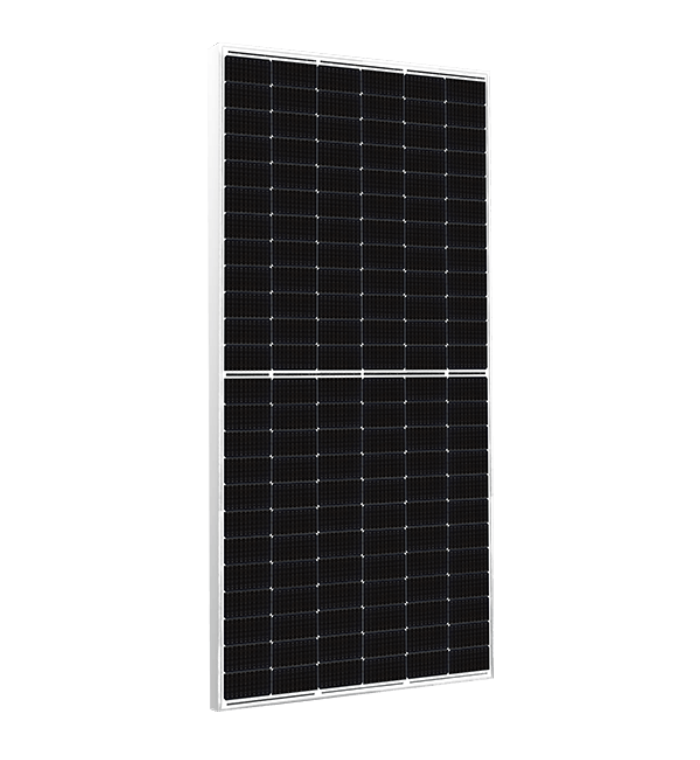

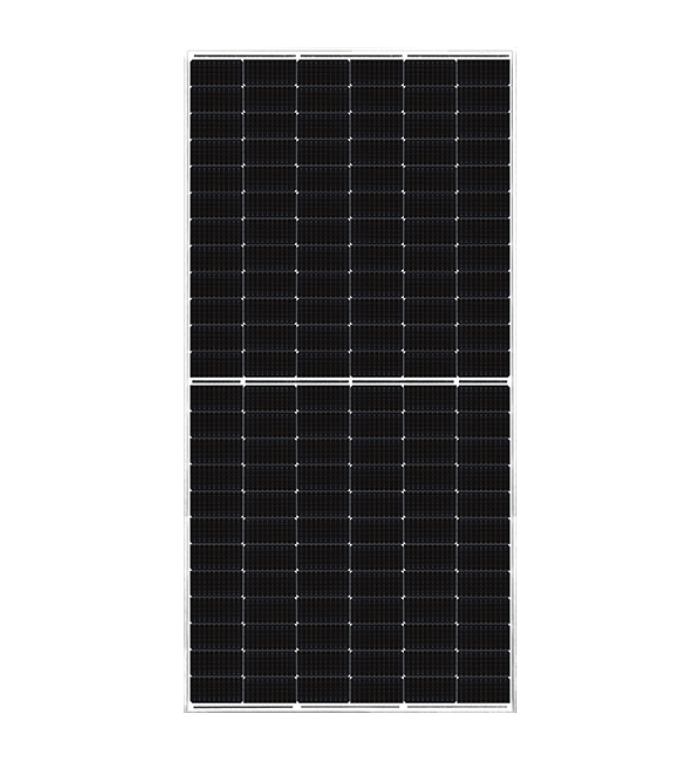

Monofacial

Product

Monofacial

540 Wp - 555 Wp

  • Anti-reflective (AR) Coated Glass for Enhanced Power
  • Excellent Module Efficiency with reflective white backsheet
  • Rayzon Solar Module ensures Long-term reliability
  • Positive Power Tolerance with Current Binning to Prevent
Datasheet Download
TECHNICAL DATA

ELECTRICAL PERFORMANCE [Note: Power tolerance: 0 ~ +4.99 W. Power measurement uncertainty: < ±3%. ]

PERFORMANCE UNDER STANDARD TEST CONDITIONS (STC) RS540WC RS545WC RS550WC RS555WC
Nominal Maximum Power (Pmax) 540 W 545 W 550 W 555 W
Optimum Operating Voltage (Vmp) 41.86 V 42.01 V 42.14 V 42.28 V
Optimum Operating Current (Imp) 12.91 A 12.98 A 13.06 A 13.13 A
Open Circuit Voltage (Voc) 49.78 V 49.91 V 50.06 V 50.20 V
Short Ciruit Current (Isc) 13.53 A 13.59 A 13.65 A 13.71 A
Module Efficiency 20.94 % 21.13 % 21.32 % 21.51 %
Fill Factor 80.24 % 80.39 % 80.54 % 80.66 %
PERFORMANCE UNDER NOCT

(NOCT = 45.25°C irradianc of 800 W/m², ambient temperature of 20°C and Wind speed 1 m/s)

Nominal Maximum Power (Pmax) 400 W 403 W 407 W 411 W
Optimum Operating Voltage (Vmp) 38.54 V 38.68 V 38.80 V 38.93 V
Optimum Operating Current (Imp) 10.37 A 10.43 A 10.49 A 10.55 A
Open Circuit Voltage (Voc) 46.82 V 46.94 V 47.08 V 47.21 V
Short Ciruit Current (Isc) 10.96 A 11.01 A 11.06 A 11.11 A
Dimensions 2278(L) x 1133(W) x 40(T) in mm
Weight(kg) 28.6
Cell type / No Of Cell 144 Half-cut Mono PERC Solar cells
Frame Anodized Aluminum Alloy (6005, Temper T6, silver colour)
Front Cover ARC coated Low Iron Tempered Glass (3.2 mm thick)
Encapsulate Ethylene Vinly Acetate (EVA) Sheet - PID resistant and UV resistant

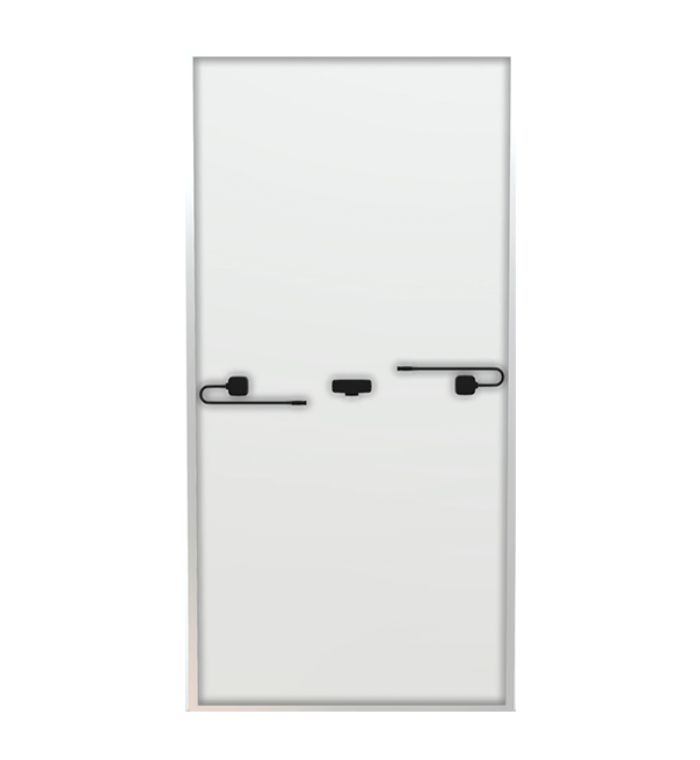

Back Cover Corona treated PVDF Fluoro-polymer Backsheet (white colour)
Junction Box 25A Split Junction Box (3 nos. with individual Bypass Diode) – Weatherproof (IP68)
Bypass Diode 40 A, 45 V, 200 °C max. junction temperature
Cable 4 sq. mm,300 mm length(Customized cable length available on request)
Connectors MC4 compatible (MC4 original available on request)
Application Class Rating Class A
Safety Class Rating Class II
Mechanical Load Test 5400 Pa-Front; 2400 Pa-Back (as per IEC & UL)
Mounting Holes Pitch (Y)-mm [A] 1400, [B] 1100 [C] 400
Mounting Holes Pitch (X)-mm 1095
STACKING STANDARD 19FT 20FT 40FT
No. of Modules per Container:

192

288

528
No. of Pallets per Container:

08

12

22

No. of Modules per Pallet/Weight:

24 Nos/ 730 Kg

Pallet Dimensions in mm:

2320(L)*1000(W)*1275(H)
