TOPCon

Product

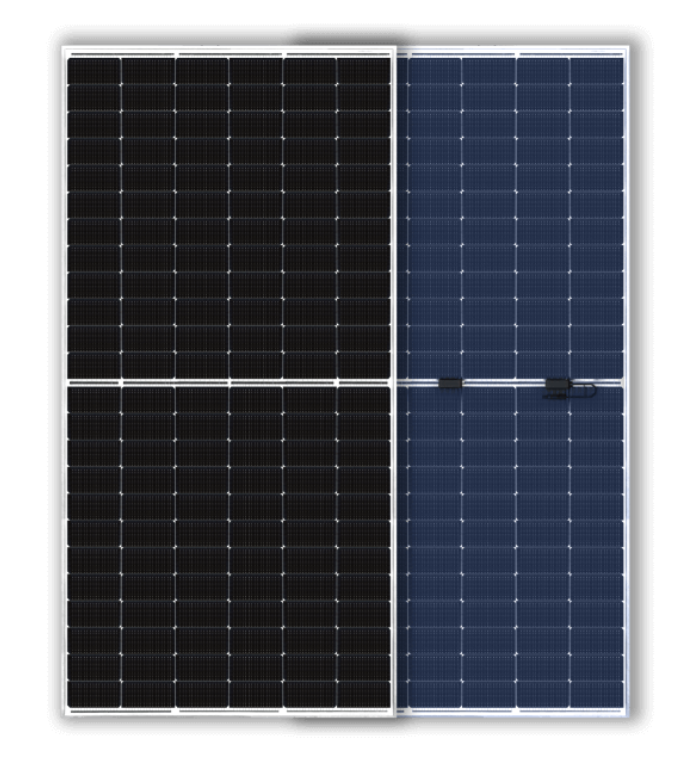

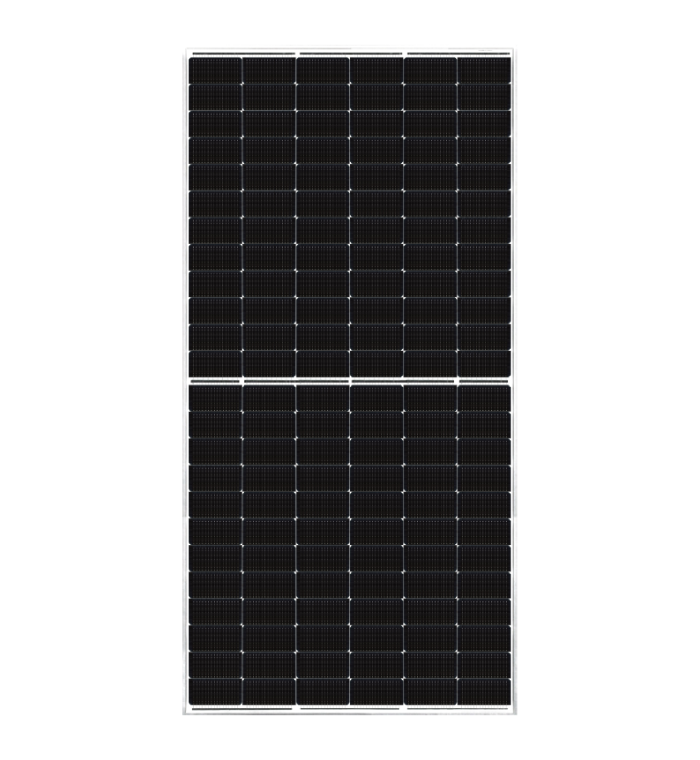

TOPCon (Glass To Glass)

425 Wp - 440 Wp

  • Anti-reflective (AR) Coated Glass for Enhanced Power
  • Excellent Module Efficiency with Bifacial Power Gain
  • Rayzon Solar Module ensures Long-term reliability
  • Positive Power Tolerance with Current Binning to Prev
Datasheet Download
Technical Data

ELECTRICAL PERFORMANCE [Note: Power tolerance: 0 ~ +4.99 W. Power measurement uncertainty: < ±3%. Average value of NOCT: 45.08 ± 2 °C]

Electrical Characteristics* RS580144TGC RS585144TGC RS590144TGC RS595144TGC RS600144TGC
Nominal Maximum Power (Pmax) 580 W ≽ 435 W 585 W ≽ 439 W 590 W ≽ 443 W 595 W ≽ 446 W 600 W ≽ 450 W
Optimum Operating Voltage (Vmp) 44.75 V ≽ 42.02 V 44.94 V ≽ 42.20 V 45.12 V ≽ 42.38 V 45.31 V ≽ 42.55 V 45.50 V ≽ 42.72 V
Optimum Operating Current (Imp) 12.97 A ≽ 10.35 A 13.03 A ≽ 10.40 A 13.08 A ≽ 10.45 A 13.14 A ≽ 10.49 A 13.20 A ≽ 10.54 A
Open Circuit Voltage (Voc) 52.80 V ≽ 49.79 V 53.01 V ≽ 49.98 V 53.21 V ≽ 50.18 V 53.42 V ≽ 50.37 V 53.62 V ≽ 50.56 V
Short Ciruit Current (Isc) 13.71 A ≽ 11.05 A 13.77 A ≽ 11.10 A 13.83 A ≽ 11.14 A 13.89 A ≽ 11.19 A 13.95 A ≽ 11.24 A
Module Efficiency 22.47 % 22.67 % 22.86 % 23.05 % 23.25 %
BIFACIAL OUTPUT – BACKSIDE POWER GAIN @ STC* [Bifaciality Factor: 80% ± 10%]

[Note: The bifacial gain depends on the power plant design and site conditions.]

5% Nominal Maximum Power (Pmax)
Module Short Circuit Current / Efficiency 		609 W
14.40 A / 23.60 % 		614 W
14.46 A / 23.80 % 		620 W
14.52 A / 24.00 % 		625 W
14.58 A / 24.21 % 		630 W
14.64 / 24.41 %
10% Nominal Maximum Power (Pmax)
Module Short Circuit Current / Efficiency 		638 W
15.08 A / 24.72 % 		644 W
15.15 A / 24.93 % 		649 W
15.21 A / 25.15 % 		655 W
15.28 A / 25.36 % 		660 W
15.34 / 25.57 %
25% Nominal Maximum Power (Pmax)
Module Short Circuit Current / Efficiency 		725 W
17.14 A / 28.09 % 		731 W
17.21 A / 28.33 % 		738 W
17.29 A / 28.57 % 		744 W
17.36 A / 28.82 % 		750 W
17.43 / 29.06 %
Dimensions 2278(L) x 1133(W) x 35(T) in mm
Weight(kg) 33

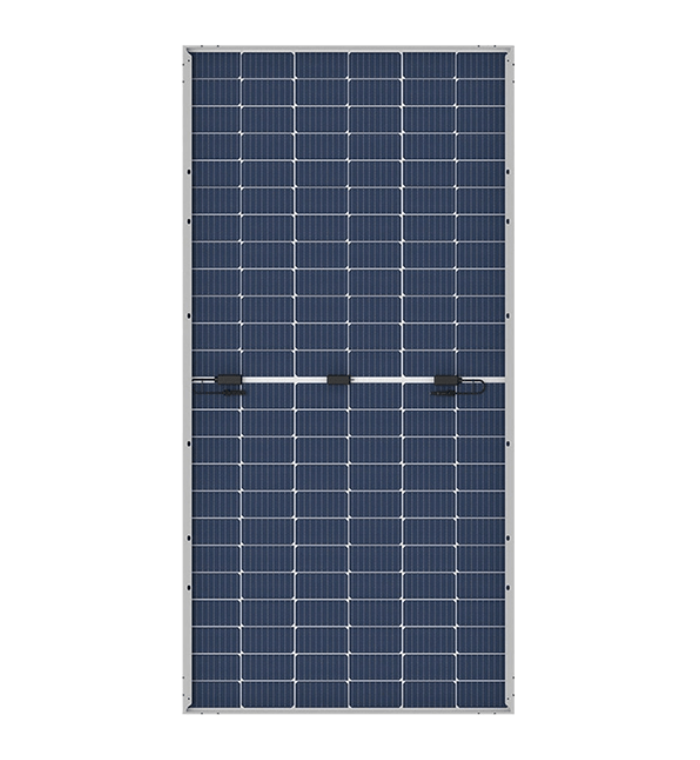

Cell type / No Of Cell 144 Half-cut N-type TOPCon Bifacial Solar cells
Frame Anodized Aluminum Alloy (6005, Temper T6, Silver colour)
Front Cover Low Iron semi-Tempered AR coated Glass (2 mm thick )
Encapsulate PID resistant and UV resistant Polymeric Film
Back Cover Low Iron semi-Tempered Glass (2 mm thick)
Junction Box 30A Split Junction Box (3 nos. with individual Bypass Diode) – Weatherproof (IP68)
Bypass Diode 50 A, 45 V, 200 °C max. junction temperature
Cable 4 sq. mm, 300 mm length (Customised cable length available on request)
Connectors MC4 compatible (MC4 original available on request)
Application Class Rating Class A
Safety Class Rating Class II
Mechanical Load Test 5400 Pa-Front; 2400 Pa-Back (as per IEC & UL)
Mounting Holes Pitch (Y)-mm [A] 1400, [B] 1100 [C] 400,
Mounting Holes Pitch (X)-mm 1095
STACKING STANDARD 20FT 40FT
No. of Modules per Container:

155

620
No. of Pallets per Container:

05

20

No. of Modules per Pallet/Weight:

31 Nos/1070 Kg

Pallet Dimensions in mm:

2320(L)*1130(W)*1275(H)
