TOPCon210R

Product

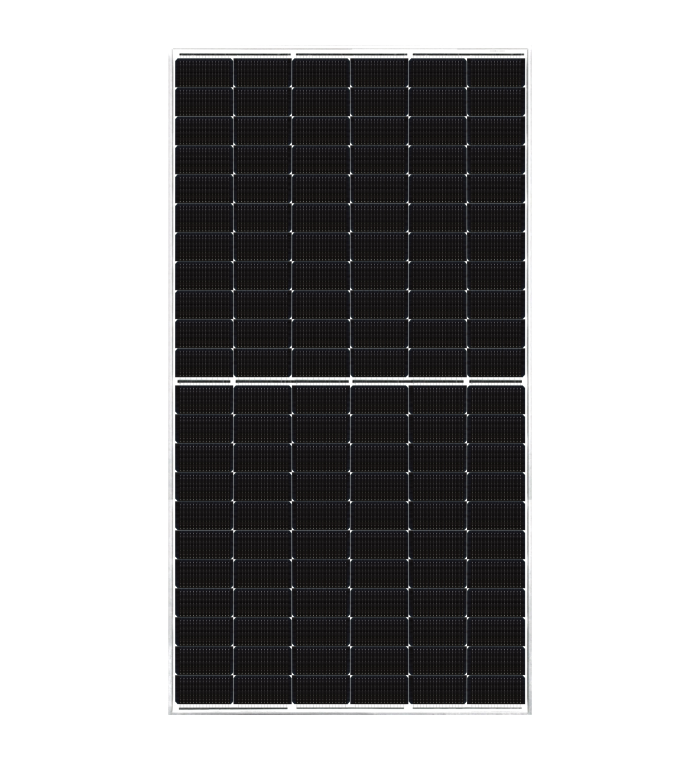

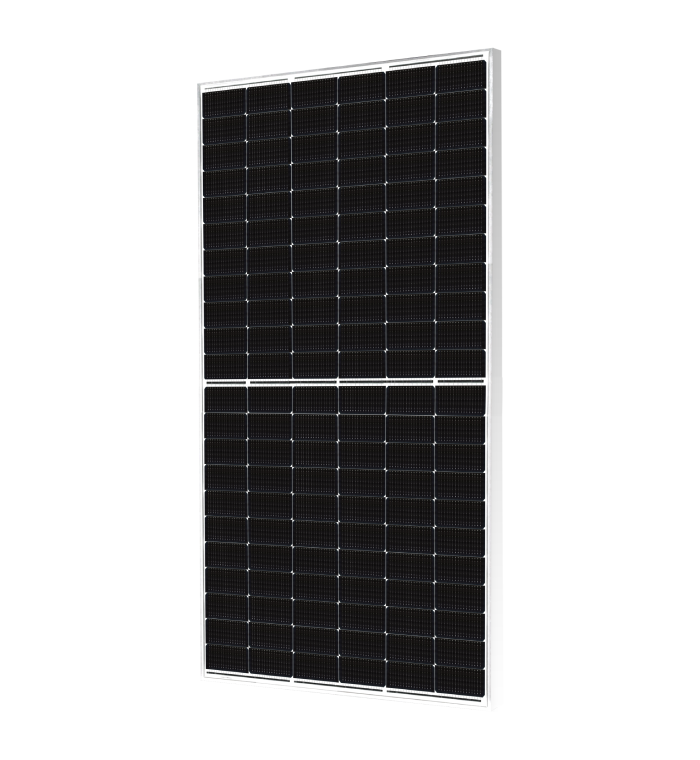

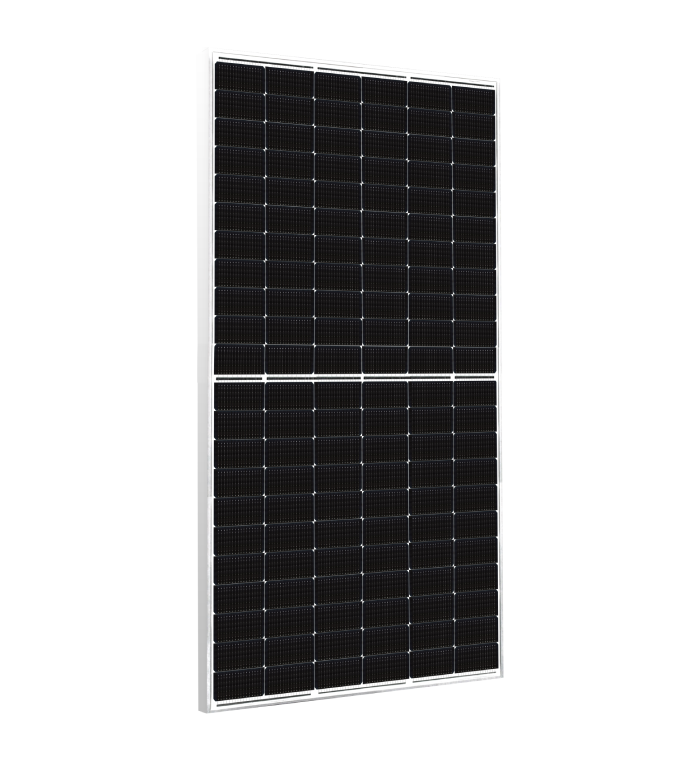

TOPCon 210R Bifacial (Glass To Glass)

610 Wp - 625 Wp

  • Anti-reflective (AR) Coated Glass for Enhanced Power
  • Excellent Module Efficiency with Bifacial Power Gain
  • Rayzon Solar Module ensures Long-term reliability
  • Power Tolerance with Current Binning to Prevent Mismatch Losses
Datasheet Download
Technical Data

ELECTRICAL PERFORMANCE [Note: Power tolerance: 0 ~ +4.99 W. Power measurement uncertainty: < ±3%. Average value of NOCT: 45.08 ± 2 °C]

Electrical Characteristics* RS610132TGC RS615132TGC RS620132TGC RS625132TGC
Nominal Maximum Power (Pmax) 610 W ≽ 457 W 615 W ≽ 461 W 620 W ≽ 465 W 625 W ≽ 468 W
Optimum Operating Voltage (Vmp) 40.95 V ≽ 38.45 V 41.18 V ≽ 38.67 V 41.37 V ≽ 38.85 V 41.52 V ≽ 38.99 V
Optimum Operating Current (Imp) 14.91 A ≽ 11.90 A 14.95 A ≽ 11.93 A 15.00 A ≽ 11.97 A 15.06 A ≽ 12.02 A
Open Circuit Voltage (Voc) 48.54 V ≽ 45.77 V 48.68 V ≽ 45.91 V 48.92 V ≽ 46.13 V 49.18 V ≽ 46.38 V
Short Ciruit Current (Isc) 15.66 A ≽ 12.62 A 15.69 A ≽ 12.65 A 15.72 A ≽ 12.67 A 15.73 A ≽ 12.68 A
Module Efficiency 22.60 % 22.79 % 22.97 % 23.16 %
BIFACIAL OUTPUT – BACKSIDE POWER GAIN @ STC* [Bifaciality Factor: 80% ± 05%]

[Note: The bifacial gain depends on the power plant design and site conditions. Electrical component ratings should be selected as per actual Bifacial gain at site (module currents indicated below)]

5% Nominal Maximum Power (Pmax)
Module Short Circuit Current / Efficiency 		640 W
16.44 A / 23.73 % 		645 W
16.48 A / 23.93 % 		651 W
16.50 A / 24.12 % 		656 W
16.52 A / 24.32 %
10% Nominal Maximum Power (Pmax)
Module Short Circuit Current / Efficiency 		671 W
17.23 A / 24.86 % 		676 W
17.26 A / 25.07 % 		682 W
17.29 A / 25.27 % 		687 W
17.30 A / 25.47 %
25% Nominal Maximum Power (Pmax)
Module Short Circuit Current / Efficiency 		762 W
19.58 A / 28.25 % 		768 W
19.62 A / 28.48 % 		775 W
19.65 A / 28.72 % 		781 W
19.66 A / 28.95 %
Dimensions 2382(L) x 1133(W) x 35(T) in mm
Weight(kg) 34.5
Cell type / No Of Cell 132 Half-cut N-type TOPCon Bifacial Solar cells
Frame Anodized Aluminum Alloy (6005, Temper T6, Silver colour)
Front Cover Low Iron semi-Tempered AR coated Glass (2 mm thick)
Encapsulate PID resistant and UV resistant Polymeric Film
Back Cover Low Iron semi-Tempered Glass (2 mm thick)
Junction Box 35A Split Junction Box (3 nos. with individual Bypass Diode) – Weatherproof (IP68)
Bypass Diode 45 V, 200 °C max. junction temperature
Cable 4 sq. mm, 300 mm length (Customised cable length available on request)
Connectors MC4 compatible (MC4 original available on request)
Application Class Rating Class A
Safety Class Rating Class II
Mechanical Load Test 5400 Pa-Front; 2400 Pa-Back (as per IEC & UL)
Mounting Holes Pitch (Y)-mm [A] 1400, [B] 1100 [C] 400,
Mounting Holes Pitch (X)-mm 1095
STACKING STANDARD 20FT 40FT
No. of Modules per Container:

279

620
No. of Pallets per Container:

09

20

No. of Modules per Pallet/Weight:

31 Nos/1130 Kg

Pallet Dimensions in mm:

2420(L)*1130(W)*1275(H)
